SS Soya Milk Plant 100 LPH (Manual) Upgradable

Soya Milk and Tofu (Soya Paneer) Making Plant. This is a semi-automatic industrial setup designed to process raw soybeans into milk and solidified tofu blocks.

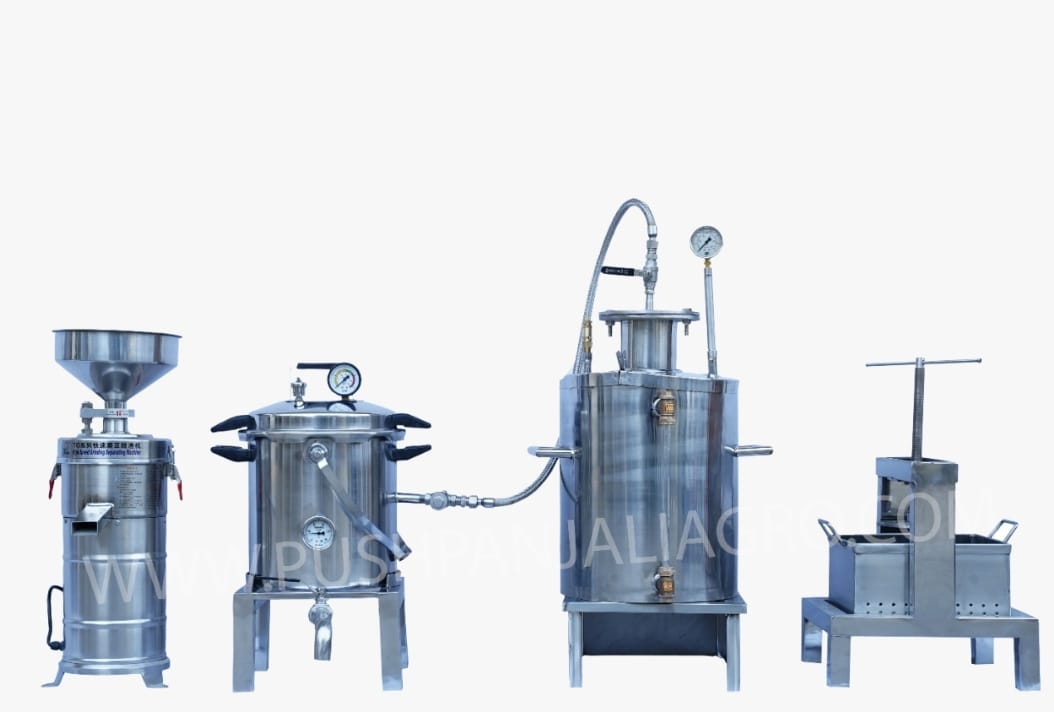

System Components (from left to right)

Soya Bean Grinder & Milk Extractor: Features a top-mounted hopper for feeding soaked beans. It grinds the beans and automatically separates the milk from the pulp (okara).

Soya Milk Sterilizer: A pressurized tank used to cook and sterilize the raw milk, which improves shelf life and removes the “beany” taste.

Steam Generator (Boiler): The central vertical unit that generates the high-pressure steam needed to heat and cook the milk in the adjacent tanks.

Manual Tofu/Paneer Press: A mechanical screw-press where the curdled milk (coagulated with a firming agent) is placed into molds and pressed into solid blocks.

General Specifications

Production Capacity: Typically ranges from 60 to 100 Liters Per Hour (LPH) for this specific model size.

Material: Constructed from SS 304 food-grade stainless steel for hygiene and rust resistance.

Power Requirement: Usually requires a single-phase or three-phase connection, with power consumption around 3kW to 5kW
